• P235/70R17 all-season BSW tires
• 17" grey styled steel wheels
• Full-size spare tire w/lock, underframe winch-type carrier, safety catch
• Black stone cuffs
• Painted argent front bumper w/black lower valance & upper fascia
• Argent rear step bumper
• Black grille surround
• Black "bar style" grille insert
• Cargo lamp integrated w/high mount stop light
• Black manual side mirrors
• Fixed rear window
• Solar tint glass
• Interval wipers
• Black door handles
• Black tailgate handle
• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/clock

• Vinyl 40/20/40 split bench front seat
• Black vinyl floor covering
• Driver & passenger door scuff pads

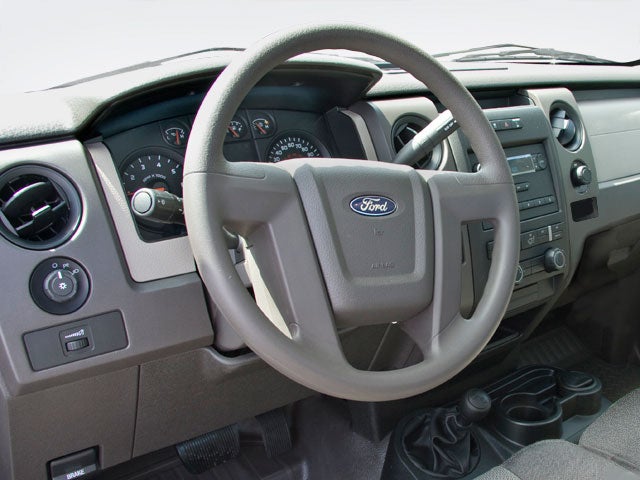

• Gray urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Black ring w/black vanes air conditioning registers
• Glove box
• Deployable cupholder under 20% seat
• Instrument panel mounted cigar lighter
• Front pwr point
• Sunvisors w/driver side strap, passenger mirror
• Front passenger side A-pillar grab handle
• Rear dome lamp

• Anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Dual stage driver & passenger front airbags w/passenger off switch
• Dual stage driver & passenger seat-mounted side airbags
• Safety canopy front side curtain airbags
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 3-point safety belt
• Auto lock safety belt feature for child seats
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

4.6L 2V EFI V8 ENGINE

• (STD)

• 3.55 Axle Ratio
• AM/FM Stereo/Clock/Single CD
• 4 Speakers
• Front beverage holders
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Rear step bumper
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Front wheel independent suspension
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 135
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3000
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2662
• Curb Weight - Rear (lbs): 2045
• Gross Vehicle Weight Rating Cap (lbs): 6450
• Gross Combined Wt Rating (lbs): 10400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: - TBD -
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: T72
• Rear Tire Order Code: T72
• Spare Tire Order Code: T72
• Front Tire Size: P235/70R17
• Rear Tire Size: P235/70R17
• Spare Tire Size: P235/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 126
• Length, Overall w/o rear bumper (in): 213.1
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 74.6
• Overhang, Front (in): 38.5
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 126.4
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Summary

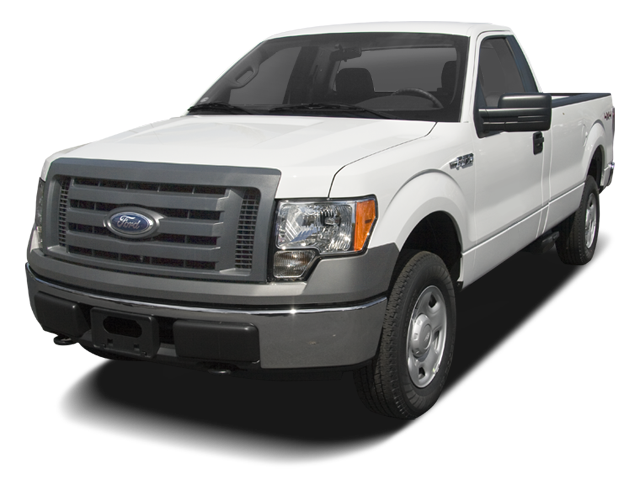

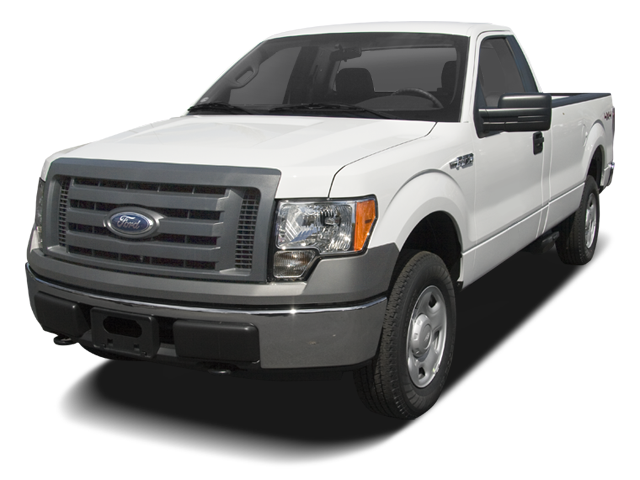

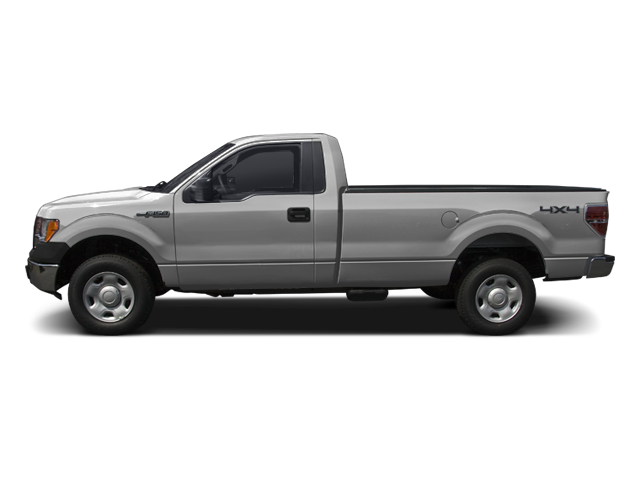

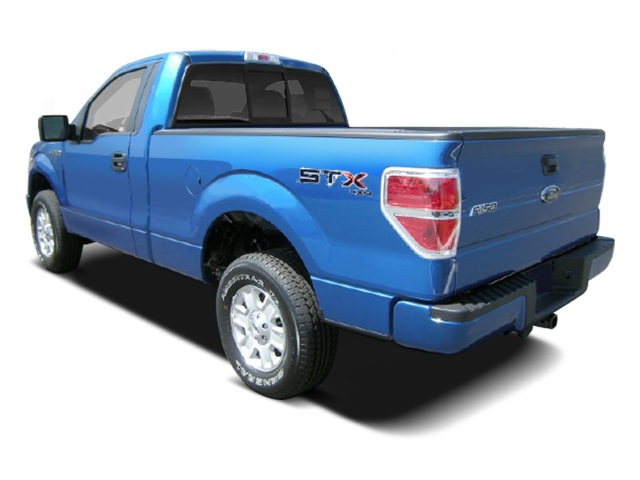

• Vehicle Name: Ford F-150
• Body Style: Reg Cab 6.5' Styleside
• Body Code: 126" WB
• Emissions
• EPA Greenhouse Gas Score: 3
